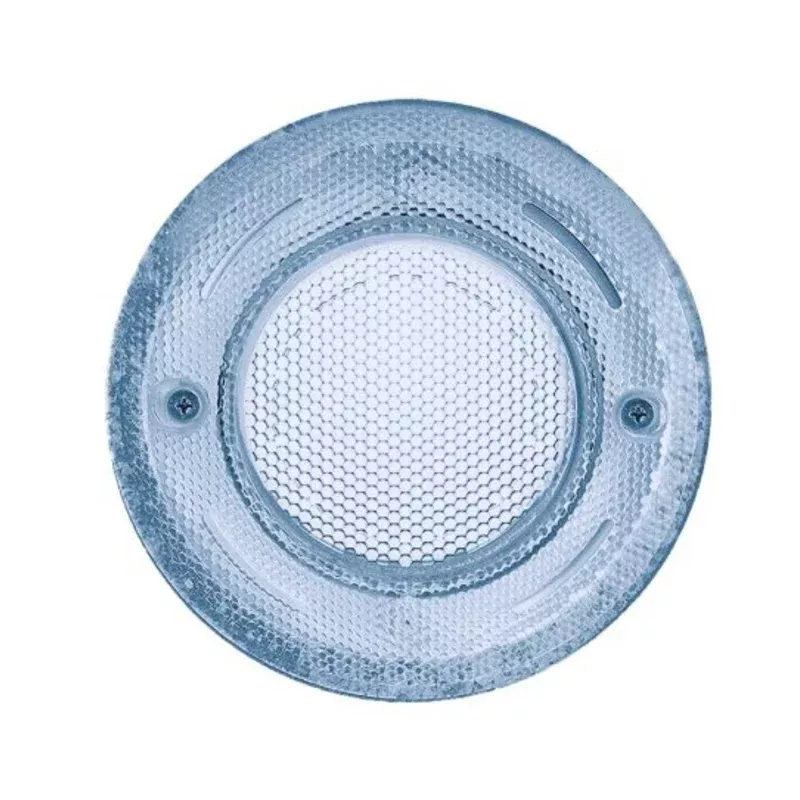

EvoMAX offers maximum illumination whilst preserving a flush profile. It has a lens illumination surface45% larger than Evo2. The wet-niche LED Lighting System connects to the same cable and housing as Evo2,the difference is the lens area and the fact that the one-piece diffused acrylic lens extends beyond the dress ring providing increased beam spread and side-lighting effects.
The multi-colour option features Aqua-Quips unique Colour Selection Palette which provides an almost limitless variety of colour possibilities and a vast array of pre-programmed scroll and flash modes.
Features:
- Super bright, energy efficient, long life
- Detachable cable for easy installation
- Stainless steel dress ring available
- Made in Australia to all relevant Australian standards and regulations
- Suitable for concrete pools and retro-fitting
- Simple installation
- Integrated Colour Selection Pallette allowing the user to choose from a variety of fixed colours and programming modes
- The entire system is extra-low-voltage ensuring safety at all times
Specifications:
- Nominal Supply Voltage: 12V AC 50/60 Hz
- Voltage Tolerance: +20%, -20%
- Protection Rating: IPX8 (to 2.0m depth)
- Power Consumption: White, blue and green = 25 VA
- Power Consumption: Spectrum III Multi Colour = 30 VA maximum
- Light Output (typical): White985 lumens, blue-300 lumens, green-595 Lumens
- Fault Protection: Power-cycle “run dry” thermal cut out. Voltage transient clamping
Aquaquip EvoMAX LED Pool Light Kit include:
- LED light
- 20m cable
- Quick connect plug kit
- wall housing
- transformer
