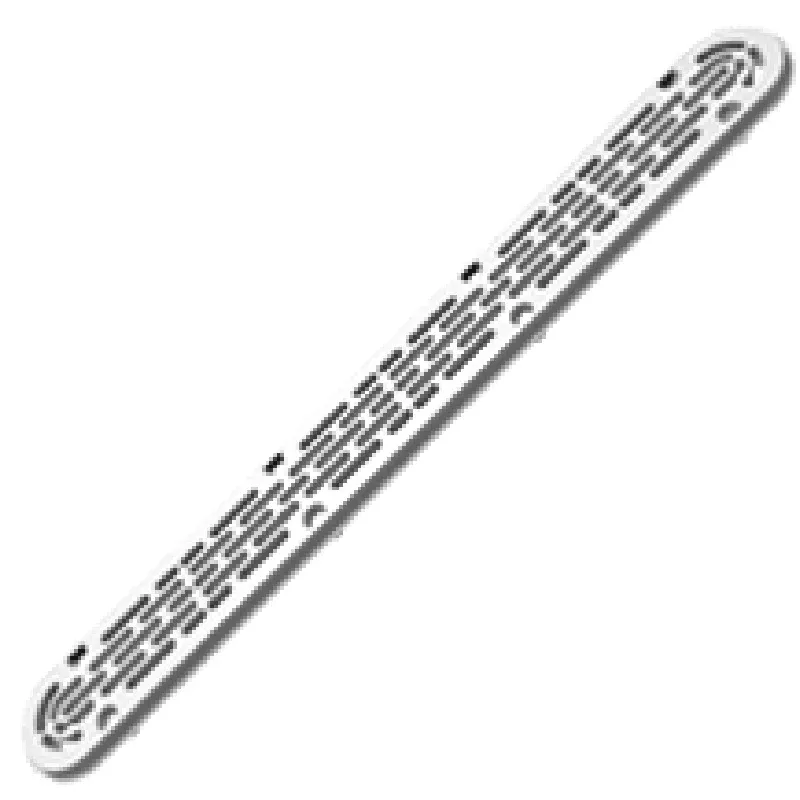

AquaStar 32CDFLFR101 32 Inch Channel Drain Flat Grate Suction Outlet Cover with Frame, White
The AquaStar 32CDFLFR101 is a 32 inch channel drain flat grate anti-entrapment suction outlet cover with frame designed for compatible in-ground pool and spa applications. This white cover and frame assembly is built for safe suction outlet performance and is commonly used in new construction and retrofit projects where a long channel drain configuration is required.
Features
- Genuine AquaStar suction outlet cover and frame
- Part number: 32CDFLFR101
- 32 inch channel drain flat grate design
- White finish
- Anti-entrapment suction outlet cover with frame
- Designed for in-ground pool and spa applications
- UV-resistant engineered polymer construction
- Commonly listed as a cover and frame set
- Cover size is approximately 4-1/16 inches x 32-13/16 inches
- Open area approximately 25.9 square inches
- Includes frame, cover, support pieces, screws, threaded plugs, and construction supports in many packaged listings
- Commonly described with three ports including bottom 2-1/2 inch OD, 2 inch ID socket/slip style connections, and internal 2 inch FPT connection points
- Designed for compliant suction outlet installations
Applications
This channel drain assembly is used in compatible pool and spa suction outlet systems where a long, narrow drain configuration is preferred. It is commonly selected for custom pool builds, tanning ledges, perimeter drainage layouts, and other installations that require a channel-style anti-entrapment suction outlet cover with frame.
Important Notes
- Verify cover size, frame style, sump or port configuration, and application compatibility before ordering
- Designed for compatible in-ground pool and spa suction outlet applications
- Follow all current suction outlet safety and installation requirements
- Replace damaged or expired suction outlet covers promptly
- Professional installation is recommended
Related Products
- Shop AquaStar Channel Drains
- Shop AquaStar Suction Covers
- Shop Pool Suction Outlet Covers
Maintenance Tips
- Inspect the cover regularly for cracks, brittleness, or loose hardware
- Keep the drain opening free of debris to help maintain proper flow
- Confirm the cover remains securely fastened after service or cleaning
- Replace the cover immediately if it shows visible damage or has reached the end of its service life
