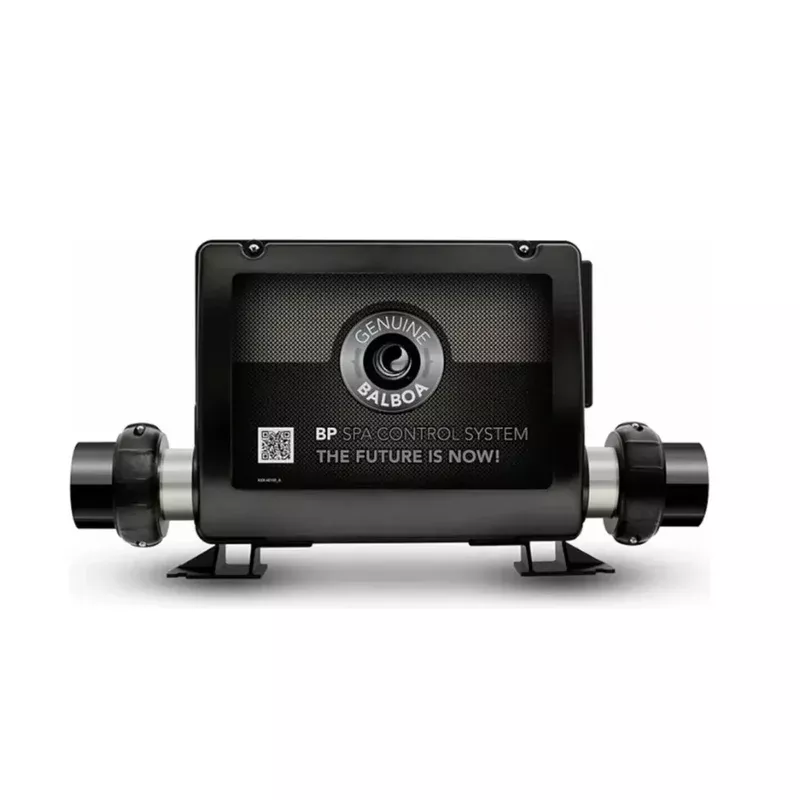

The Balboa BP7 (240v) Spa Pack features a 7-relay system with 32 configurable settings, supporting spas with 1 to 4 pumps, including Microsilk systems. It is adaptable for both 120V and 240V power supplies. This unit requires a minimum flow rate of 23 GPM and operates on 240VAC.
It replaces models 56378-03, 56487-05, 56567, and 56901-01, and is compatible with TP Keypads.
Features:
Control and Configuration
- 7 Relays: The system features 7 relays, allowing it to operate in up to 32 different configurations.
- Multi-Pump Support: Capable of powering spas with 1 to 4 pumps, including configurations with one or two-speed pumps and a dedicated circulation pump.
- M7 Technology: Uses dual M7 temperature and flow sensors for reliable performance and easier installation, as no pressure switch is required.
- Programmable Settings: Offers extensive programmable settings for filtration cycles, temperature, and other spa functions.
Heating and Components
- 5.5kW Heater: Includes a powerful 5.5kW stainless steel flow-thru heater for efficient water heating.
- “Plug-n-Click” Connectors: Features easy-to-use connectors for pumps, blowers, ozone generators, and lights, simplifying the installation process.
Connectivity and Smart Features
- Wi-Fi Compatibility: The system is Wi-Fi ready, allowing users to control the spa remotely via a smartphone app (using the optional Balboa ControlMySpa module, sold separately).
- Accessory Support: Supports various Balboa accessories, including Chromozon3 (ozone), Balboa Bluetooth Audio, and Status Pro systems.
Specifications:
| Feature | Specification | |
|---|---|---|
| Product Type | Spa Control System (Spa Pack) | |
| Model Number | G5361 (BP7 Series) | |
| Heater Power | 5.5 kW @ 240V (or 1.375kW @ 120V convertible) | |
| Heater Type | Flow-Thru, Stainless Steel | |
| Voltage Input | 240V (Also adaptable for some 120V components) | |
| Max Pumps Supported | Up to 4 (various 1 and 2-speed configurations) | |
| Ozone Support | Yes (Configurable 120V/240V) | |
| Circulation Pump | Optional (Configurable 120V/240V) | |
| Sensor Technology | Patented M7 (temperature and flow) | |
| Wi-Fi Capable | Yes (with optional Control My Spa module) | |
| Dimensions (Control Box) | Approx. 17″ L x 4.75″ W x 11.5″ H |
