Part 6231-041
Manufacturer Code 007211F
Dimensions 3.5″ L x 0.5″ W x 0.5″ D
Alternate Part ‘s 007211F, 47-197-1222
Product Description
INYO6231-041RAYPAK007211F
************************************************

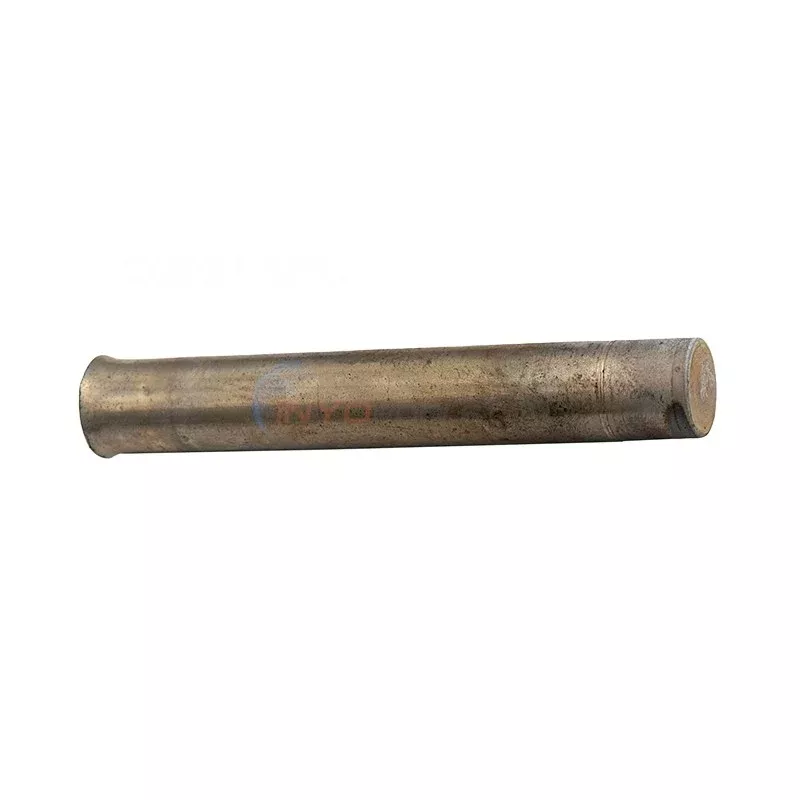

DETAILED DESCRIPTION: THIS IS A STAINLESS STEEL THERMOWELL USED ON SOME RAYPAK HEATERS.THIS IS A SINGLE PIECE OF STAINLESS STEEL.A NUMBER OF OTHER RAYPAK THERMOWELLS INCLUDE THIS ITEM, BUT THE OTHERSHAVE THREADED BRASS FITTINGS SOLDERED TO THISMATERIAL:STAINLESS STEEL SHAPE: ROUND CYLINDER OPEN AT ONE END, CLOSED AT THE OTHER
************************************************
DIMENSIONS: LENGTH: 3-3/8″ OUTSIDE DIAMETER: 1/2″ (EXCEPT FOR RIGHT AT THE OPEN END)OUTSIDE DIAMETER: 9/16″ (THE TUBE IS FLAIRED RIGHT AT THE OPEN END SO IT’S LARGER HERE) INSIDE DIAMETER: 15/32″
************************************************
MARKINGS:THERE ARE NO MARKINGS
