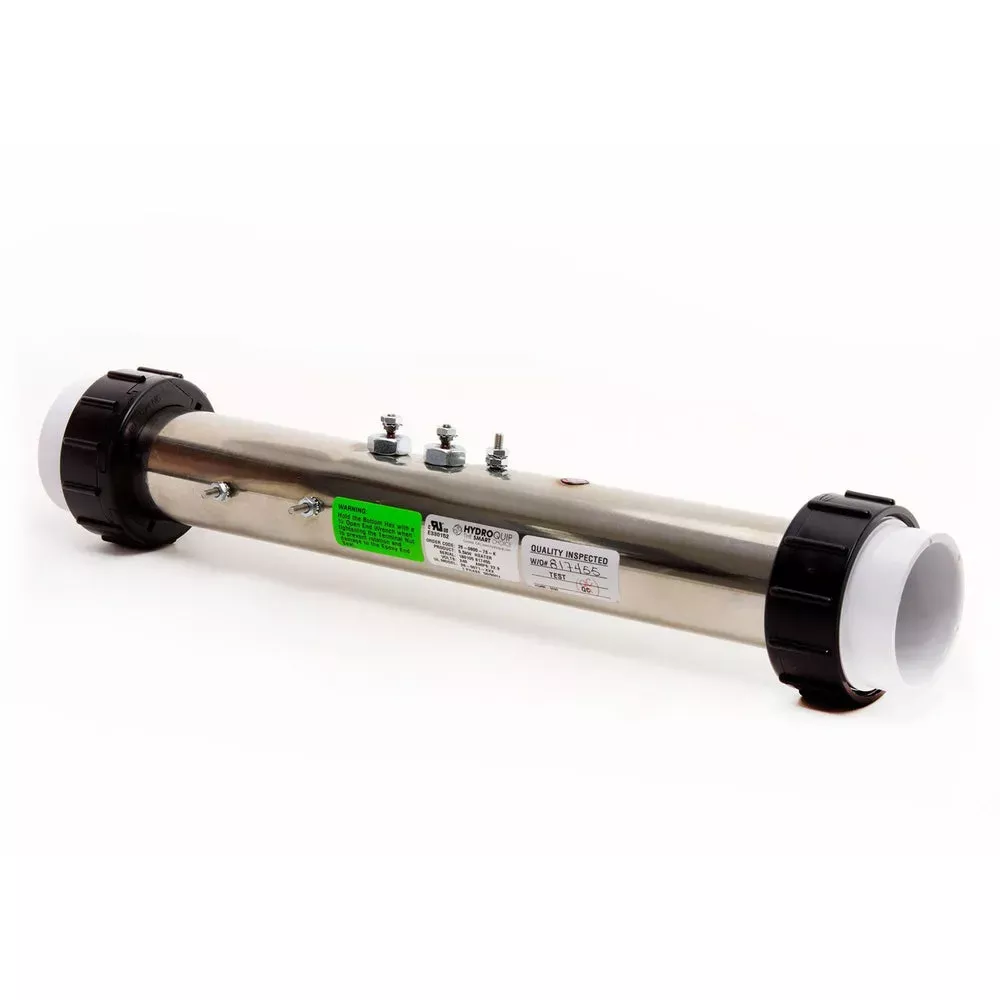

Premium Stainless Steel Spa Heater Assembly for Gecko Pro Pack/S-Class. Attaches to circuit board with either metal straps -or- wire cables. If your system has straps, simply attach to existing. If your setup utilizes wires, order Optional Heater Cables (checkbox above).
- 240V/120V
- Pressure sensor tap
- Ground lug & bonding bar studs
- 2″ Slip Socket tailpieces
Product Notes: Always use two wrenches when making electrical connection to heater element terminals, to avoid damage to epoxy post seal. 1-year warranty.
Details:
Length: 15″ Stainless Steel Tube (not including union length)
Connection: 2″ Slip Socket (Easily Convertible to 1½” Plumbing)
Voltage:240V / 120V
Wattage:4.0kW
Unions: (2) 2″ Split Nuts, Tailpieces & O-ring Gaskets included
Mounting Studs: Included
Cables: Optional (Checkbox Above)
Pressure Taps: (1) Flush Mount
Replacement Element:
Cross Reference Numbers:4.0kW: 20-00242, 20-00280, 20-00284, 20-00285, 20-00294, 26-0800-5S-K, 530AA0078, 530AA0095, 72651, 9920-100338, C2400-0800 / 5.5kW: 20-00272, 20-00274, 26-0800-7S-K, 530AA0107, 9920-100339, B24055GM, C2550-0800(ET-G)
Warranty: 1 year Limited Warranty
