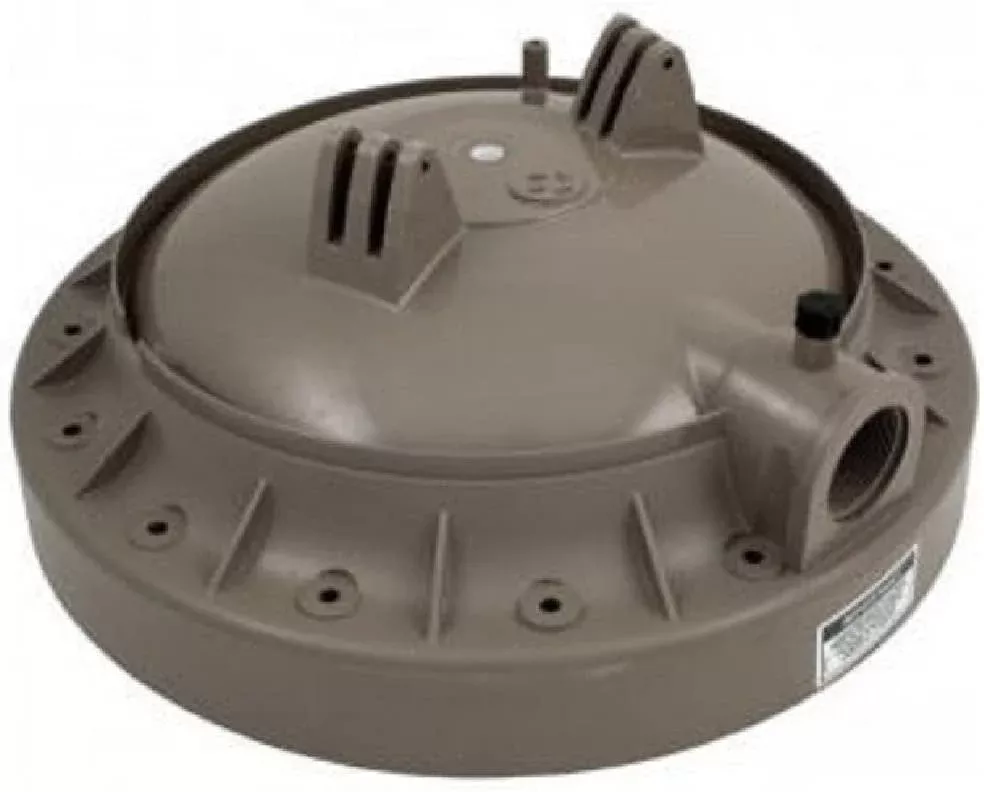

Hayward ECX11194AT – Filter Head with Vent Valve (Taupe) for Perflex EC65/EC75 Series
Product Overview
The Hayward ECX11194AT is an OEM replacement filter head assembly designed for the Perflex EC65, EC65A, EC75 and EC75A extended-cycle D.E. filters. It features an integrated vent valve and robust construction to ensure proper seating, reliable air release, and long service life.
Key Features
- Complete filter head assembly designed for Hayward Perflex EC65/EC65A/EC75/EC75A models.
- Built-in vent valve to release trapped air and help maintain optimal filtration flow.
- Durable molded polymer construction in taupe finish to resist pool chemical exposure and UV degradation.
- Designed to fit existing tank bolt patterns and replace older or cracked heads without modifying the filter body.
- Includes factory mounting bosses and sealing surfaces for proper installation.
Technical Specifications
- Part Number: ECX11194AT
- Applicable Filters: Hayward Perflex EC65, EC65A, EC75, EC75A
- Color: Taupe
- Shipping Weight: Approximately 7.9 lb
- Dimensions: Approximately 17.5″ × 17.5″ × 7″ (overall packaging size)
Compatibility & Installation Notes
This filter head is intended to replace the original top assembly of compatible Perflex D.E. filters. When installing, ensure the tank is depressurized, remove the existing head and gasket, clean the sealing surface, then install the new ECX11194AT head assembly. Re-tighten bolts in a star pattern, prime the filter system and inspect for proper operation and air release.
Troubleshooting & Service Tips
- Air present in system or poor filtration: Confirm the vent valve is functioning and the head bolts are evenly tightened.
- Leaks around filter head seam: Check the gasket seating, clean surface of tank top flange, and ensure bolts are torqued evenly.
- Head cracking or old plastic fatigue: Replace promptly to avoid catastrophic failure under pressure.
Why Choose This Replacement Head?
Replacing an aging or damaged filter head with the ECX11194AT helps restore factory-level integrity, restores proper venting of air, and supports safe, efficient filtration performance. This helps reduce downtime, prevent leaks and extend the usable life of the filter tank.
Maintenance Tip
Inspect the filter head and bolts at each service interval. Clean away any build-up or scale on the sealing flange, re-tighten bolts after initial operation following installation, and ensure the vent valve remains free of debris. Regular maintenance of the head assembly helps maintain peak flow and prevents air infiltration that can reduce system efficiency.
