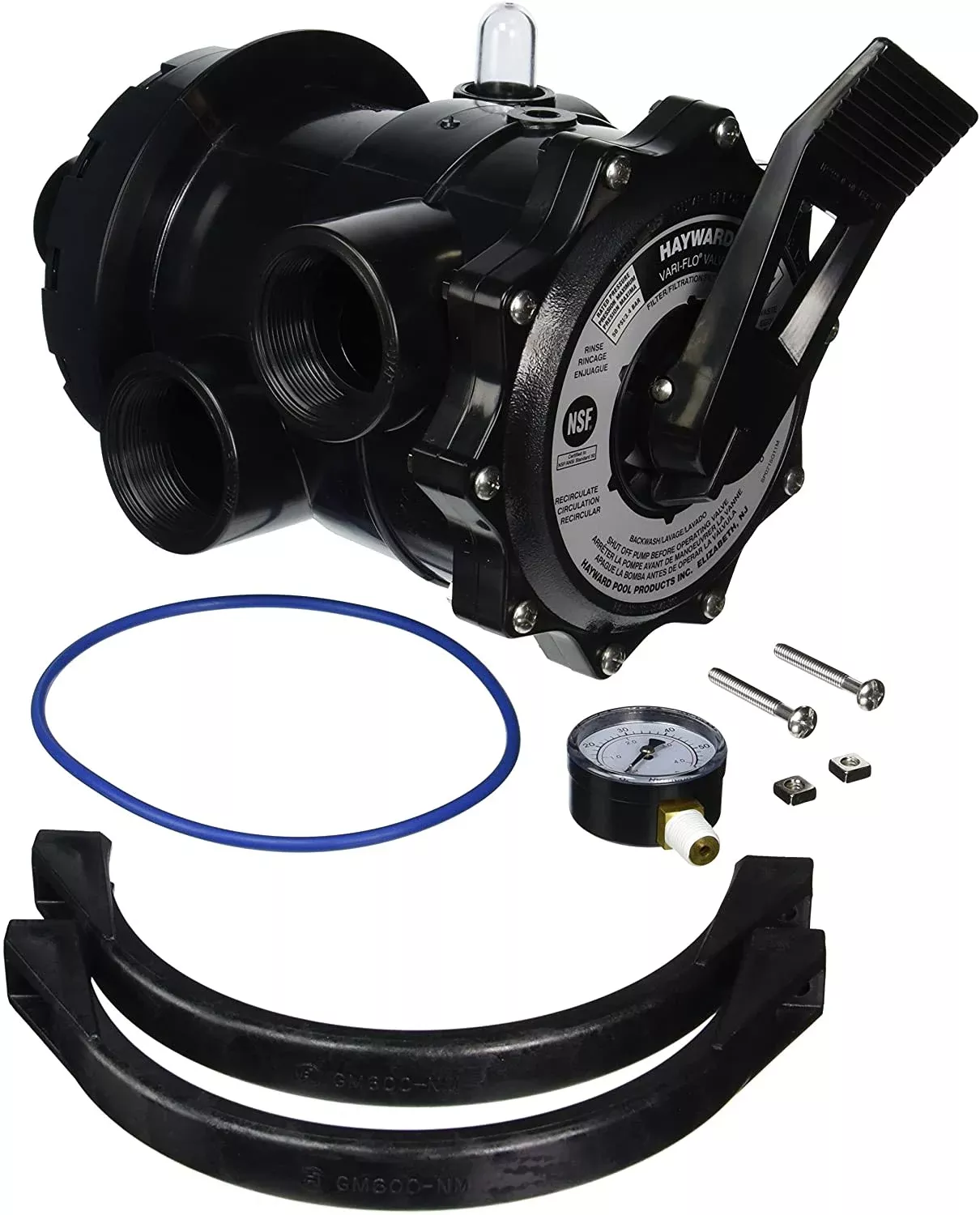

Hayward SP071620T Vari-Flo XL Top-Mount Multiport Valve (2″ FIP) with Clamp & O-Ring
The Hayward SP071620T is an OEM Vari-Flo XL 6-position multiport control valve designed for top-mount Hayward Pro Series sand filters. It features 2″ female threaded (FIP/FPT) ports for high-flow plumbing, an easy-turn lever handle, and a top-mount clamp connection for fast service access.
Fits / Compatibility
- Top-mount Hayward Pro Series sand filters that use a clamp-style multiport valve connection
- Commonly used on filter models such as S220T2, S244T2, S270T2, S310T2, and S360T2
- Connection Type: Top Mount (Clamp Style) with 2″ FIP plumbing ports
Valve Functions (6-Position)
- Filter – normal filtration and vacuuming
- Backwash – cleans the sand bed by reversing flow
- Rinse – resettles sand after backwash
- Waste – bypasses the filter and sends water to the waste line
- Recirculate – bypasses the filter while returning water to the pool
- Closed – shuts off flow (pump must be off before selecting)
Key Features
- 2″ female threaded ports for high-capacity pool systems
- Top-mount clamp design for secure mounting and easier service
- Built-in sight glass to monitor backwash water clarity
- Durable ABS/reinforced thermoplastic body built for pool environments
- Lever handle with positive position indexing for smooth switching between modes
What’s Included
- Complete SP071620T multiport valve assembly
- Clamp for top-mount connection
- Tank O-ring (seal between valve and filter)
- Integrated sight glass
Installation Notes
- Match port style and size: this valve is 2″ FIP/FPT (threaded) and top-mount clamp.
- Use pool/spa-approved thread sealant on threaded connections; avoid overtightening plastic threads.
- Always shut the pump off before changing valve positions.
- After installation, perform a backwash/rinse cycle and check for leaks at the clamp and ports.
Related Products
- Hayward SP071620T (search)
- Hayward Valve Clamp GMX600NM (search)
- Hayward Valve O-Ring GMX600F (search)
- Hayward Multiport Spider Gaskets (search)
- Hayward Pro Series Sand Filter Parts (search)
Maintenance Tips
- Backwash when filter pressure rises about 8–10 PSI above your clean starting pressure.
- After every backwash, run Rinse briefly before returning to Filter to help prevent blowback.
- If you see water leaking to waste while filtering, inspect the internal diverter/spider gasket and seals.
- Keep clamp and sealing surfaces clean during service, and replace the tank O-ring if it’s flattened, cracked, or stretched.
