Part 6272-25A
Manufacturer Code 074451
Dimensions 22″ L x 16″ W x 3″ D
Alternate Part ‘s 074451, 74451, 074451Z, 47-110-1330, PEN074451, PUR-151-9694
Product Description

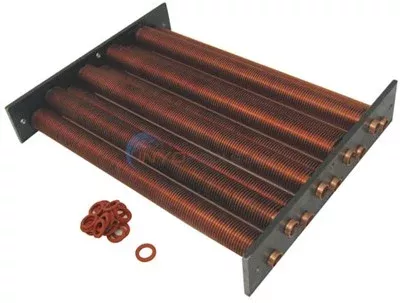

INYO6272-25A PENTAIR0754451 GENERAL DESCRIPTION: THIS IS THE TUBE BUNDLE USED IN THE PENTAIR 250 MINI MAX & MINI MAX PLUS HEATERS NUMBER OF TUBES: 9 (STAGGERED WITH 4 ON TOP AND 5 ON BOTTOM) LENGTH: 18-1/4″ (LENGTH FROM OUTSIDE OF ENDPLATE TO OUTSIDE OF ENDPLATE) HEIGHT): 3″ (END PLATE HEIGHT) WIDTH: 14-3/8″ (MEASURED ON THE ENDPLATE – BASICALLY THIS IS HOW LONG THE ENDPLATE IS) MARKINGS: NO MARKINGS ITEMS INCLUDED WITH THE TUBE BUNDLE (18) 070951 TUBE SEAL GASKETS
