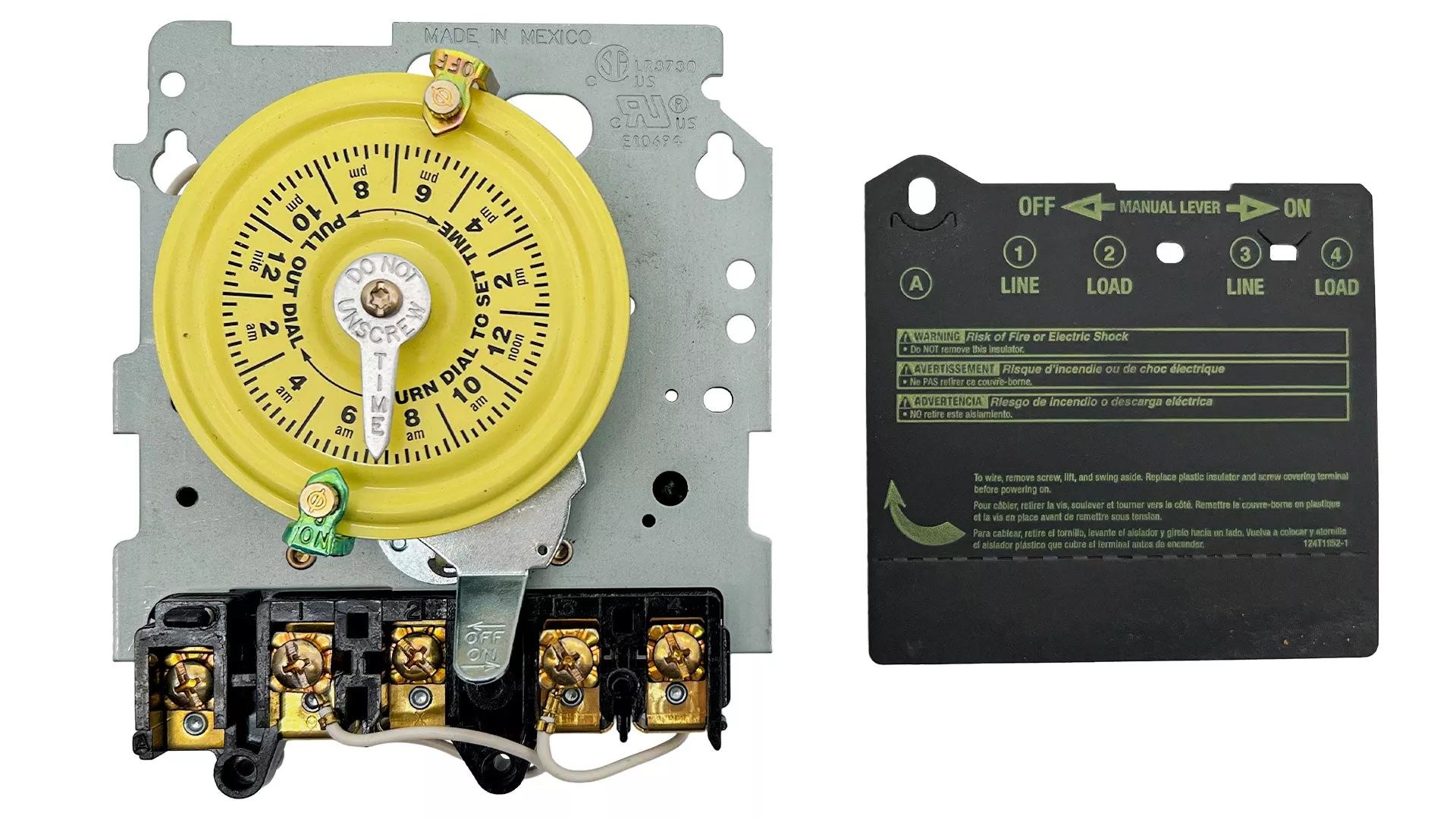

Intermatic 24-Hour 208-277V Mechanical Time Switch, SPDT, Mechanism Only | T106M
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Features:
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper included
- Teeter-type terminals for multiple load connections
Specifications:
- Switch Type – 1 NO/1NC, SPDT
- Input Voltage – 280-277V, 60Hz
- Minimum ON/OFF Times – 1 Hour
- Maximum ON/OFF Operations – 12
- Has Manual Override
- Number of Trippers Included – 1 ON/OFF
Applications:
- Indoor Lighting Control
- Timing/Scheduling ON/OFF
