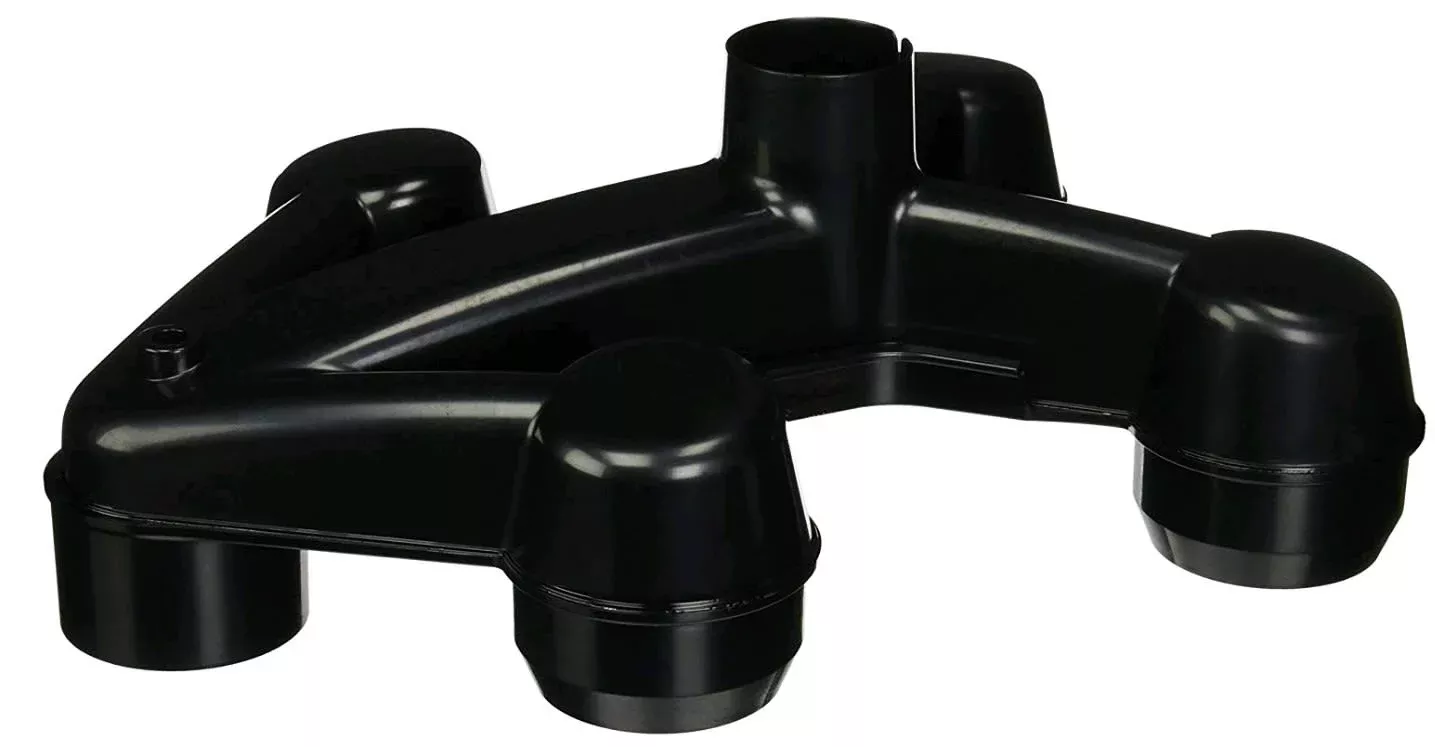

Jandy R0357600 Manifold Assembly for CL/CV Series Cartridge Filters
The Jandy R0357600 manifold assembly is a direct replacement component designed for CL and CV series cartridge pool filters. It serves as the outlet manifold that distributes the filtered water back into the pool system, restoring reliable flow and filtration performance.
Key Features
- Direct replacement manifold for use with CL and CV series cartridge filters.
- High‐quality molded housing designed for pool system environments.
- Includes O‐ring seal and is designed to drop into existing filter tank top with minimal rework.
- Specifically fits filter models: CL340, CL460, CL580, CV340, CV460, CV580.
- Improves filtration flow return by restoring correct outlet port assembly integrity.
Technical Specifications
- Part Number: R0357600
- Compatible Filters: CL340, CL460, CL580, CV340, CV460, CV580
- Includes: Manifold assembly with integral ports and O‐ring seal
- Application: Cartridge cartridge pool filters — outlet manifold replacement
- Condition: Replacement component – tank and filter cartridges not included
Installation & Compatibility Notes
Prior to installation, ensure the pump is turned off and the filter tank pressure is relieved. Open the tank, remove the filter cartridges, and lift out the old manifold assembly. Clean the tank top area and replace the O‐ring or seal surface. Seat the new manifold assembly in exactly the same orientation, ensuring all port tubes are aligned. Reinstall the cartridges, reassemble the lid, and pressurize the system. Monitor for proper flow and check for leaks at initial startup.
Maintenance Tips
- Inspect the manifold annually for cracks, warping or discoloration, which may indicate heat or chemical damage.
- Replace the O‐ring seal when opening the tank for service to maintain proper sealing and prevent bypass flow.
- Keep the tank top clean and free of debris or scale buildup to ensure the new manifold seats correctly.
- If the filter exhibits unusual pressure rise or low flow, consider the manifold as one of the service items in the diagnostic process.
Why Choose This Manifold Assembly?
For pool professionals and service technicians, the Jandy R0357600 offers a reliable OEM replacement for the top outlet manifold of popular CL and CV series cartridge filters. Restoring this component can renew filter performance, extend system life, and help reduce service callbacks due to flow or sealing issues.
