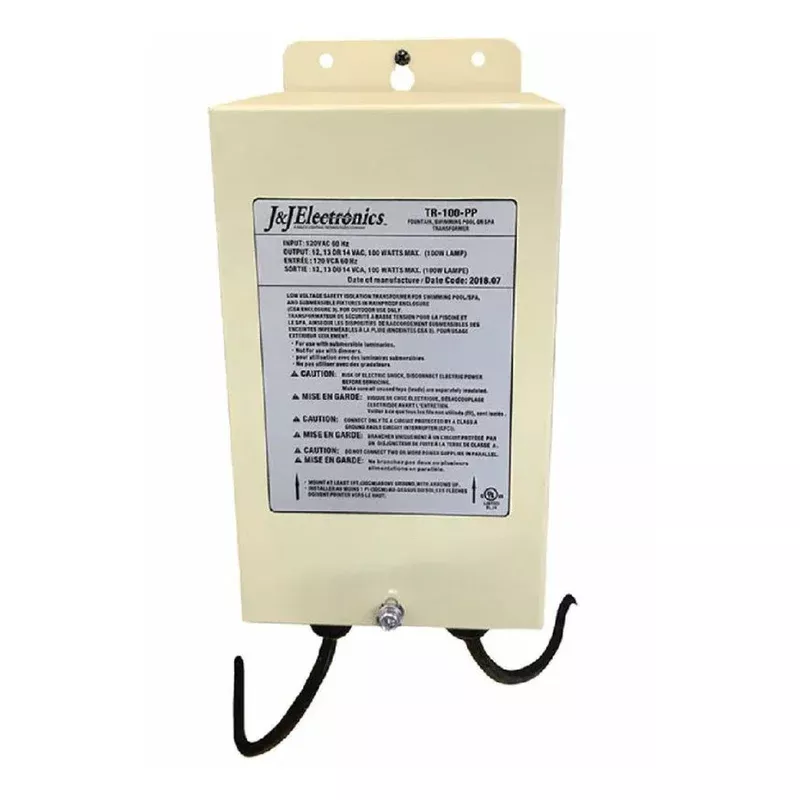

J&J Electronics Low Voltage Transformer 25036
Features and Benefits:
- Operates in harsh environments
- Approved to UL Pool Standards
- Works flawlessly witost color changing LED Pool Lights
- Insulated Coil to Reduce Noise
- Removable Mounting Brackets
- Brushed 304 grade stainless steel
- Removable hinged cover for easy access
- Tool-less bottom access plate locks into place when cover is closed
- Bottom panel contains one large 1-1/2″ conduit inlet and four 3/4″ knockouts for lead exit
- Mounting brackets located on top and bottom of the console
Electrical:
- Input Voltage: 120 Volt
- Wattage: 100
- Magnetic circuit breaker for every 300W circuit
- Output Voltage Taps: 12-15 Volts
Protection:
- In-line primary overload protection prevents system damage with auto thermal shut-off
- In-line secondary magnetic breaker prevents short circuit protection with reset
Terminals:
- Extra-large terminal block for convenient low voltage cable connections
Hayward 25036 (TR-100-PP)
