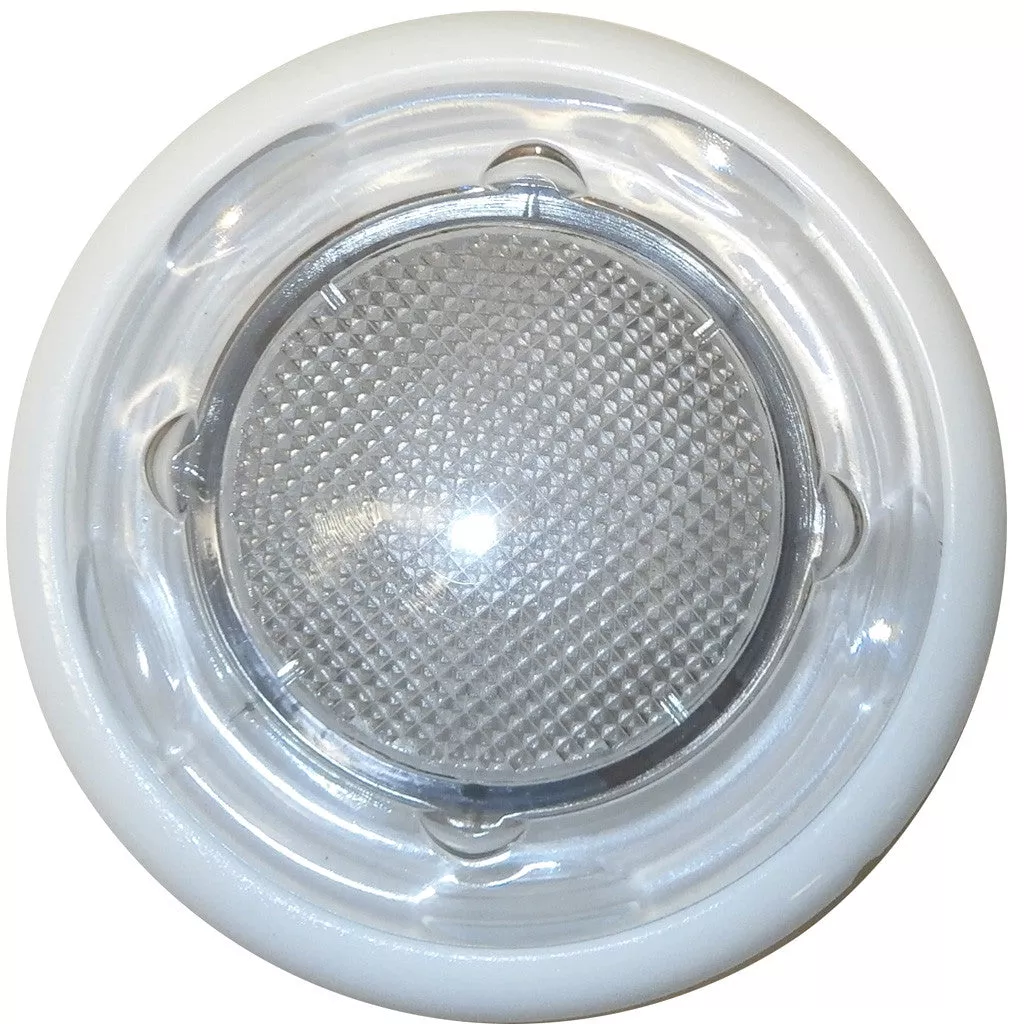

X259255 – Spa Lighting – 5 inch Jumbo Light Assembly for Master Spas
aka “Carousel Lamp”
You may see:
LR
E131871
on the white part on the back of the old assembly
You may also see “718-6600” on the old retaining nut.
Note: You will receive 4 (four) items as shown in photos.
Dimensions:
Lens (entire width):
Diameter: 5.0 inches (12.70 cm)
Height: 3.0 inches (7.62 cm)
1 (one) included
Lens (itself):
Diameter: 3.25 inches (8.255 cm)
Spacer:
Diameter: 5.875 inches (13.575 cm)
Height: 0.50 inches (1.27 cm)
1 (one) included
Gasket:
Diameter: 4.50 inches (11.43 cm)
Thickness: 0.125 inches (0.3175 cm)
1 (one) included
Nut:
Diameter: 5.0 inches (12.70 cm)
Height: 1.0 inches (2.54 cm)
1 (one) included
