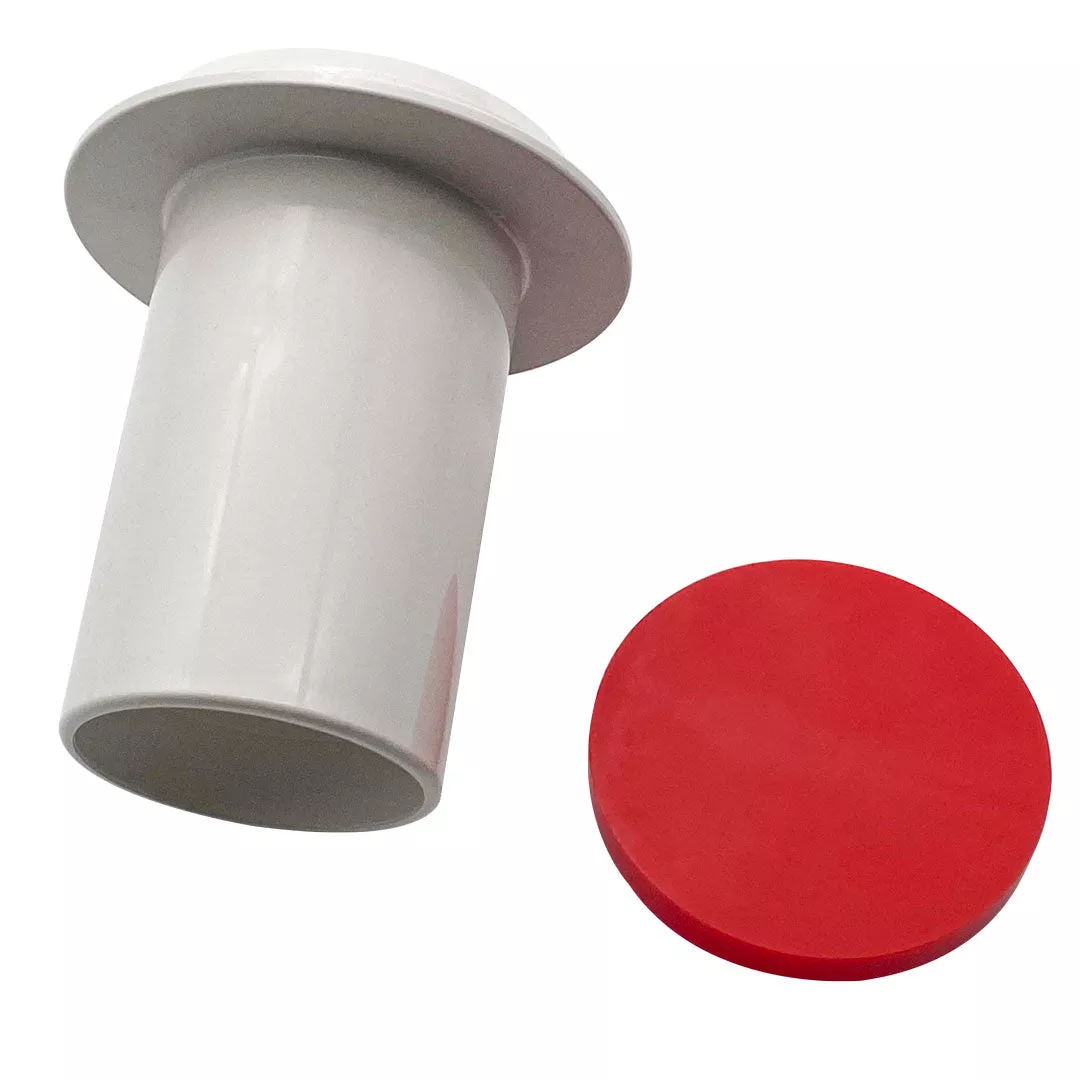

Paramount PV3 Smooth Body Collar + CapWhite (004-627-4762-01)
OEM PV3 smooth body collar and plaster cap in white. For use in smooth body in-floor systems to protect plumbing and finish alignment.
Features
- Specifically for PV3 smooth body (not ribbed) systems
- White plaster cap included for protection during plastering
- Compatible with risers 005-252-1520 or 005-252-1522
- Flush body integration for seamless pool finish
- Durable material resists chemical and UV damage
This Paramount PV3 Smooth Body Collar (part 004-627-4762-01) is the correct OEM body for pools built with the PV3 in-floor cleaning system that use the smooth body profile. It includes the plaster cap needed to protect the internal path during finish work, and is designed to align perfectly with the pool surface and internal nozzle assembly. It must be used with the specified riser model 005-252-1520 or 005-252-1522.
Pro Tip
Leave the plaster cap in place until all finishing is done; remove it only when ready to insert the nozzle. Confirm the collar sits flush before plaster goes on.
Installation Tips
Glue collar into riser with heavy-body PVC cement, avoiding rotation. Do not prime the body itself (only internal pipe). After plaster cures, remove cap, insert nozzle, and twist to lock. Observe the 11 cutout / water stop detail per installation manual.
