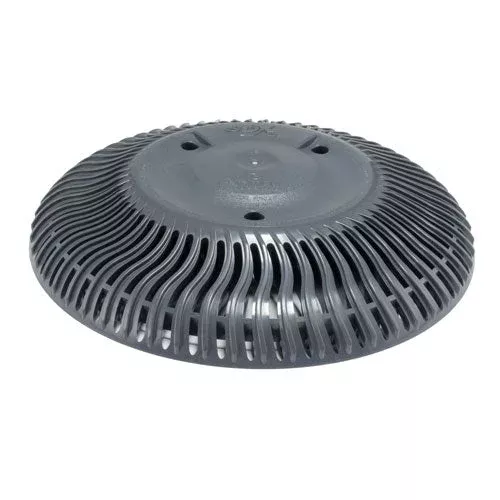

Paramount SDX2 Retro 10″ Round Universal Suction Outlet Covers
SDX2 is a high flow suction outlet suitable for use as a wall fitting and also as a floor drain when debris removal is not a concern. SDX2 boasts a flow rating of 188 gpm on the floor and 154 gpm on the wall making it compatible witost residential pumps up to 3. SDX2 has a 1.396 feet per second velocity at the opening at a maximum listed 188 gpm.
The SDX2 Retro sumpless suction/main drain cover includes a universal adapter kit that will fit over all round sumps/frames up to 10″.
SDX2 Retro Suction Outlet Cover Features:
- Retrofits to fit virtually all main drain sumps/frames up to 10″
- Can be used on Concrete Pools
- Anti-vortex shield blocks contact from direct suction
- Ribbed design acts as 60 “mini” drains
- Secondary support plate protects the sump and fittings
- Made from UV-resistant engineered polymer
- No sump required
- Includes cover, adapter plate and screw kit
- Stainless steel security screws
- SDX retro can be installed as a single cover with an SVRS installed on the suction line
- ASME A112.19.8 – 2007 Listed
- Compliant with the Virginia Graeme-Baker Pool and Spa Safety Act
- USPC (uniform swimming pool, spa and hot tub code) compliant
- Replace every five years from the date of purchase
Single – Sumpless Specifications:
- Floor -188 gallons per minute
- Wall – 154 gallons per minute
