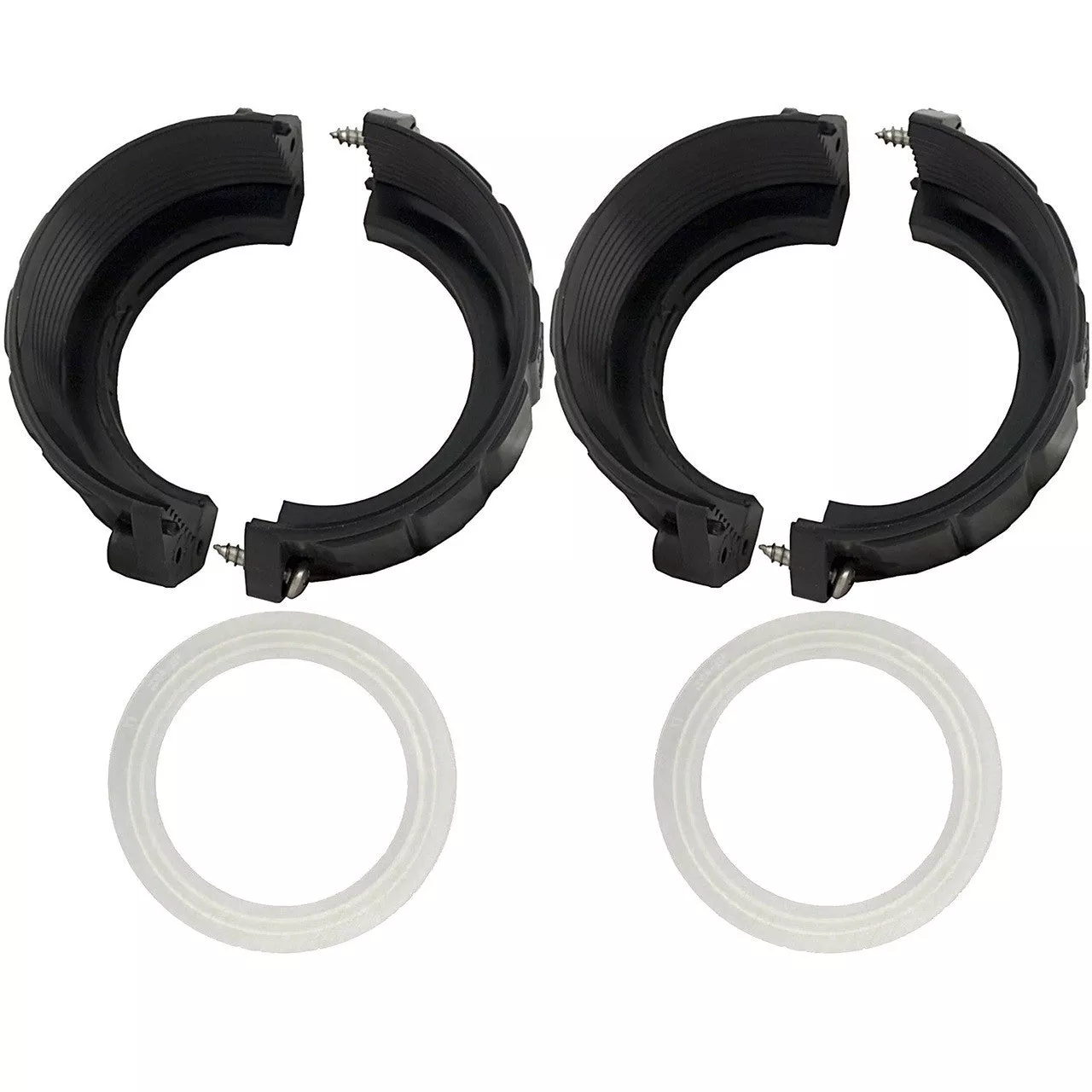

SplitNutSet – (2) X802900 – Spa Heater Split Nut and (2) X801765 – Heater Gasket O-Ring
This is a custom kit for Spa Repairs
Each Kit Contains the following parts:
(2) X802900 – Master Spas Heater Split Nuts
Master Spas X802900 Heater Split Nut
Includes:
1 x X802900 – Spa Heater Split Nut (Left)
1 x X802900 – Spa Heater Split Nut (Right)
2 x Screws
Dimensions:
Outside Dimensions
Width: 4.0 inches (10.16 cm)
Inside Dimensions Top:
Width: 2.25 inches (5.715 cm)
Inside Dimensions Bottom:
Width: 3.0 inches (7.62 cm)
Heater Union Part Type: Split Nut
Plumbing Connection Size “A”: 2″
Plumbing Connection Type “A”: Female Buttress Thread (fbt)
Plumbing Connection Size “B”: 2-3/16″
Plumbing Connection Type “B”: Large Flange (For Metal Housings)
(2) X801765 – Master Spas Heater Gasket O-Rings
(Color May Vary)
This part has a little raised circle
Measurements:
Width: 3 inch (7.62 cm) [circular diameter]
Height: .25 inch (0.635 cm)
Inside Diameter: 2.1667 inch (5.503418 cm)
Outside Diameter: 2.875 inch (7.3025 cm)
Other items associated with this part:
X277700 – Master Spas 2 inch Heater Tailpiece
X801765 – Heater Gasket O-Ring
