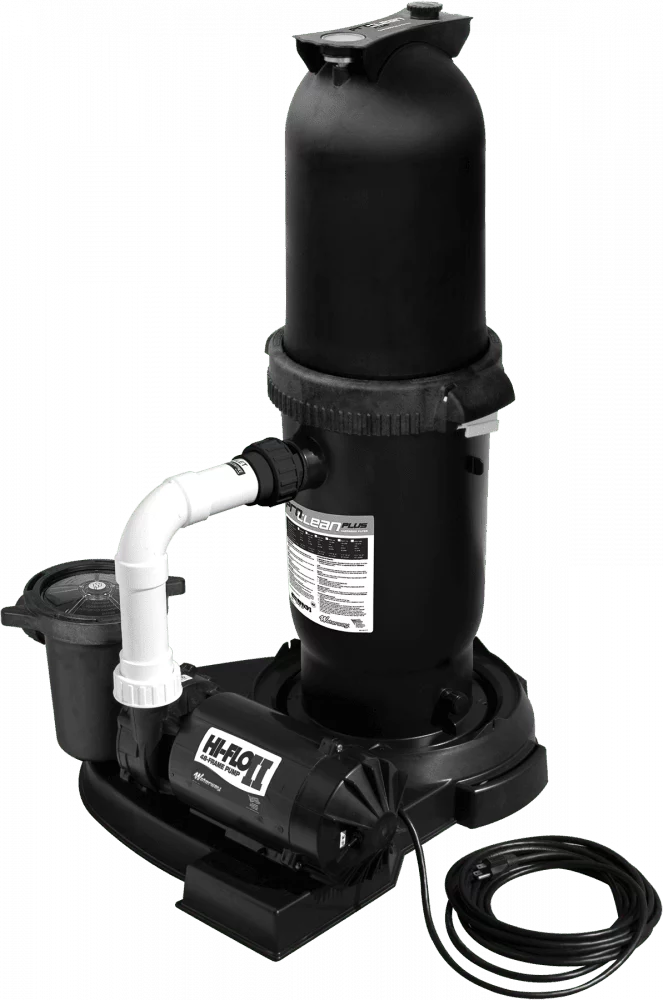

Waterway PCCF-150 ProClean Plus Single Cartridge Pool Filter System (150 Sq Ft)
The Waterway PCCF-150 ProClean Plus is a single-cartridge filtration system designed for in-ground pools that need strong flow,
easy servicing, and efficient debris capture without the mess of D.E. powder or the frequent backwashing of sand.
With a 150 square foot cartridge element, it provides solid dirt-holding capacity and longer run times between cleanings.
Key Specifications
- Manufacturer: Waterway
- Model/Series: ProClean Plus
- Part Number: PCCF-150
- Filtration Area: 150 sq ft
- Pool Type: In-ground
- Plumbing Size: 2″ (union connections)
- Max Flow (commonly listed): up to 150 GPM
- Turnover (typical listing): up to 45,000 gallons (6 hours) / 60,000 gallons (8 hours)
Cartridge Element Details (Common Replacement Dimensions)
- Cartridge Area: 150 sq ft
- Outside Diameter: 8-15/16″ (8.9375″)
- Length: 23-1/4″ (23.25″)
- Top: Open (4″ inner diameter)
- Bottom: Open (4″ inner diameter)
Features
- Single-cartridge design: Simple cleaning and fast servicing
- Lock ring with double locking mechanism: Secure lid retention and easier service access
- Fiber-reinforced lid: Built for durability in outdoor equipment pads
- UV-resistant tank materials: Helps reduce sun-related aging
- Manual air relief: Helps purge trapped air after cleaning or startup
- Integrated pressure gauge: Makes it easy to track when cleaning is needed
- Larger drain ports: Improved draining during service and winterizing
What This Filter Does
- Captures dirt, dust, pollen, and fine debris to keep water clear and reduce load on sanitizers.
- Supports strong circulation with fewer interruptions compared to filters that require frequent backwashing.
- Protects downstream equipment by reducing debris passing through to heaters, salt systems, and return fittings.
When to Clean or Replace
- Clean the cartridge when filter pressure rises about 810 PSI over your clean starting pressure.
- Replace the cartridge if pleats are torn, bands are broken, end caps are cracked, or performance stays poor after deep cleaning.
- If flow remains weak after cleaning, inspect for scale/oils on the media and perform a proper soak/degrease cycle.
Installation Notes
- Install on a level equipment pad with adequate clearance above the lid for cartridge removal.
- Use properly supported plumbing to prevent stress on unions and tank ports.
- After startup, bleed air using the air relief and confirm the pressure gauge reads a stable clean pressure baseline.
- Verify all unions and drain fittings are watertight before leaving the system running unattended.
Installation and Maintenance Tips
- Rinse the cartridge thoroughly from top to bottom between pleats; rotate the element to clean evenly.
- Deep clean periodically to remove oils (body oils/sunscreen) and scale; rinse fully before reinstalling.
- Inspect lid and drain O-rings each service and lubricate lightly with pool-safe silicone lubricant.
- Record your clean starting pressurethis is the best indicator of when cleaning is needed.
