WLKATA Mirobot Professional Kit
Overview

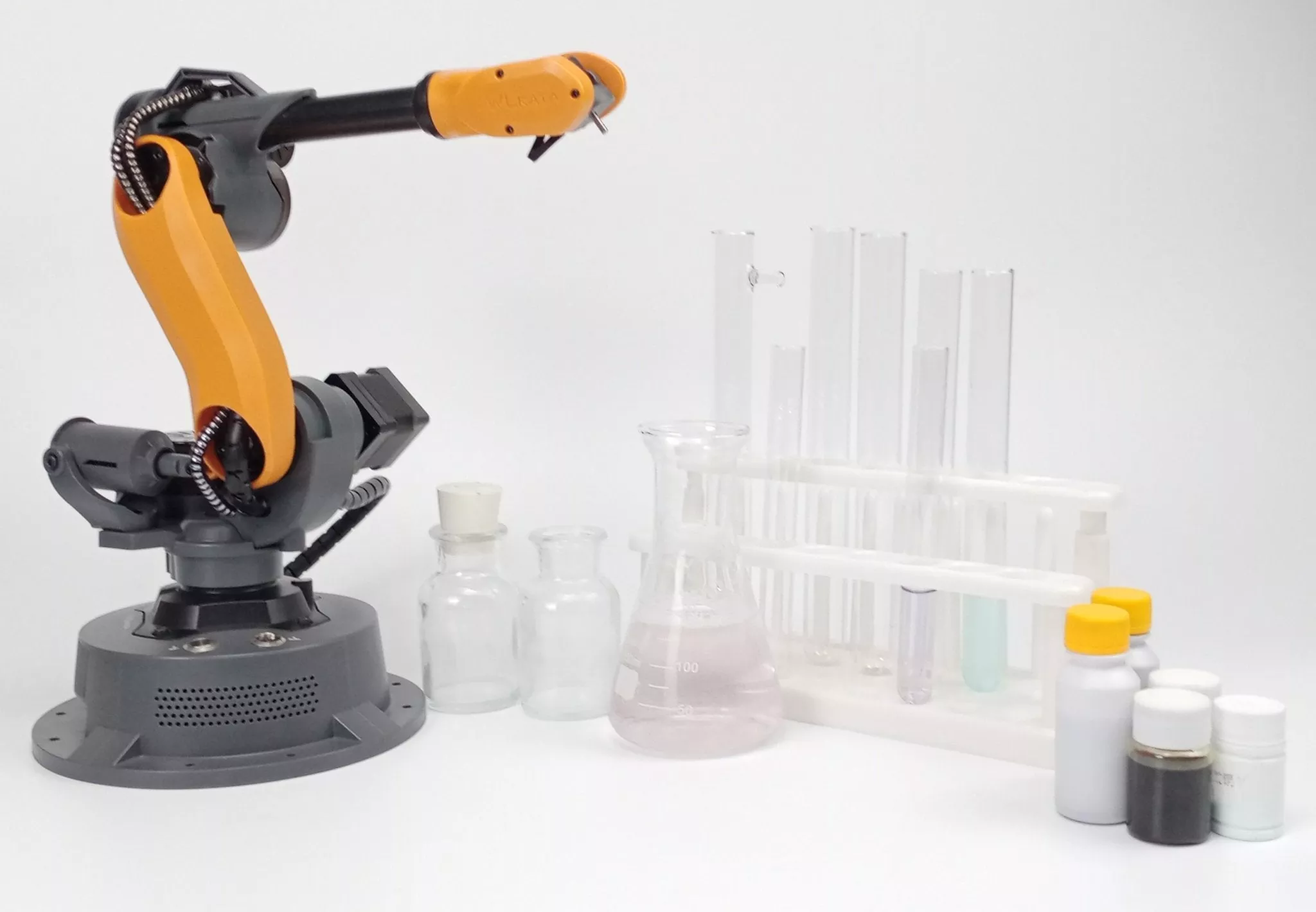

The WLKATA Mirobot Professional Kit is the higher-tier version of the WLKATA Mirobot 6-axis desktop robotic arm. It uses the same 6+1 axis arm as the Education Kit, with a 315 mm reach, 0.2 mm repeatability, and a 250 gram standard payload (up to 400 grams near the desktop), and adds a fuller set of end effectors, a wireless teach pendant, and university-level curriculum for deeper coursework.
The Mirobot has the same 6+1 axis configuration as a typical industrial robot, so it is well suited to teaching real forward and inverse kinematics, motion planning, and pick-and-place. The professional bundle is aimed at high-school CTE programs and university robotics labs that want to go beyond the basics into simulation and full programming workflows.
It supports a wide range of control methods, from a wireless Bluetooth teach pendant and Blockly visual coding for beginners, through Python and G-code, up to ROS, MATLAB, and CoppeliaSim for advanced robotics courses.
Specifications
| Robotic Arm | |
|---|---|
| Model | WLKATA Mirobot |
| Axes | 6+1 (6 axes plus 1 additional degree of freedom) |
| Standard Payload | 250 g |
| Maximum Payload | 400 g (moving near the desktop) |
| Reach | 315 mm |
| Repeatability | 0.2 mm |
| Base Diameter | 160 mm |
| Build and Control | |
| Joints | High-accuracy stepping motors with reducers |
| Controller | Arduino Mega 2560 based control box |
| Connectivity | Bluetooth, WiFi, RS485, and a custom API |
| Software and Programming | |
| WLKATA Software | WLKATA Studio (Blockly, drawing, teach-and-play, Python, G-code) and BlockFactory |
| Languages | Blockly, Scratch, Python, C++, and G-code |
| Developer Platforms | ROS, ROS2, CoppeliaSim (V-REP), Webots, MATLAB, and NVIDIA Omniverse |
| End Effectors | |
| Included Tools | Servo gripper, suction cup, and pen holder |
| Optional Tools | Pneumatic gripper set, laser engraver, 3D-printer extruder, and CNC spindle |
Key Features
- True 6-Axis Arm: The 6+1 axis layout matches a typical industrial robot for teaching real kinematics.
- Professional Accessory Set: Adds a full pneumatic end-effector set (suction cup, two-finger gripper, three-finger soft gripper) on top of the standard tools.
- Wireless Teach Pendant: A Bluetooth teach pendant makes it easy for beginners to start without a PC.
- Precise and Repeatable: 0.2 mm repeatability for pick-and-place, path following, and calibration labs.
- Full Software Stack: WLKATA Studio and BlockFactory, plus ROS, ROS2, MATLAB, CoppeliaSim, and NVIDIA Omniverse.
- University Curriculum: Includes higher-level textbooks covering robotics with MATLAB and CoppeliaSim, and ROS.
Applications
The Mirobot Professional Kit suits high-school CTE programs and university robotics labs. Its true 6-axis design and full software stack let students move from physical exercises into simulation and digital-twin workflows, mirroring how robots are developed and tested in research and industry.
Typical coursework includes forward and inverse kinematics, motion planning, pick-and-place, sensor coordination, and ROS and MATLAB simulation. The wider end-effector set supports a broader range of projects, from gripping and vacuum pickup to drawing and light tooling.
Setup and Getting Started
- Unbox and inspect: Remove the Mirobot, control box, teach pendant, and end effectors, and check for shipping damage.
- Mount the base: Set the arm on a stable surface with room for its 315 mm reach.
- Connect power and control: Connect the control box, and pair the wireless teach pendant over Bluetooth.
- Install WLKATA Studio: Install the software and try teach-and-play and Blockly first.
- Attach an end effector: Fit a gripper or the pneumatic set; tools swap quickly with thumb screws.
- Move into simulation: Follow the curriculum to connect the arm to ROS, MATLAB, or CoppeliaSim for advanced projects.
What’s Included
- Robotic Arm: WLKATA Mirobot 6+1 axis arm (x1)
- Control Box: Mirobot control box and power supply (x1)
- Teach Pendant: Wireless Bluetooth teach pendant (x1)
- End Effectors: Servo gripper, pen holder, and a pneumatic set (suction cup, two-finger gripper, three-finger soft gripper)
- Software: WLKATA software suite
- Curriculum: University-level textbooks (robotics with MATLAB and CoppeliaSim, and ROS)
Documentation and Resources
- Developer Community (GitHub): github.com/wlkata
Warranty Information
The WLKATA Mirobot Professional Kit is covered by the WLKATA Product Warranty Policy, provided by Wristline Inc. (WLKATA) or its authorized agents.is an authorized WLKATA dealer, so warranty support is handled through us.
| Item | Coverage |
|---|---|
| WLKATA Mirobot Robotic Arm | 1-year warranty |
| Spare Parts | 3-month, 6-month, or 1-year warranty, depending on the part |
| Consumables | Not covered under warranty |
Not Covered
- Damage from misuse, accident, or operation outside the documented limits
- Damage from unauthorized repair, disassembly, or modification
- Consumable and wear parts
Warranty service requires a valid proof of purchase.
